| 品牌 | 3M |
|---|---|
| 型号 | 9713 |
3M(TM) XYZ-Axis Electrically Conductive Tape 9713 is an isotropically conductive pressure sensitive tape. 3M tape 9713
conducts electricity through the thickness (Z-axis) and in the plane of the adhesive (X, Y planes) and is ideal for EMI/RFI
shield and EMI/RFI gasket attachment to metal surfaces. The tape consists of a high performance 3M adhesive loaded with
conductive fibers. The result is a double-sided tape providing both good adhesion and good electrical performance. The
conductive fibers in 3M tape 9713 also provide improved handling characteristics.
3M(TM) XYZ-Axis Electrically Conductive Tape 9713 is ideal for attaching EMI shields to electronic and electrical devices.
3M tape 9713 may be used with many types of foil laminate shields, such as aluminum/PVC or copper/PVC laminates, to
provide a customized shielding solution. This tape may also be used to attach conductive fabric/foam core EMI gaskets to
electronic ry. 3M tape 9713 may be applied in strips or die cut to specific shapes and sizes. Compared to screws or
other mechanical connectors, 3M tape 9713 provides reduced assembly time and a solid bond line with no gaps which
might result in EMI emission.
3M 9713导电双面胶带，结合了3M胶带技术及现代传导技术，为电子业提供高效能及高可靠度的产品。由压敏胶带到热固式薄膜，3M导电胶带及薄膜依照您对性能的需求，提供广泛的选择。您可以找到所需的机械性能，导电性及环境稳定性等要求。

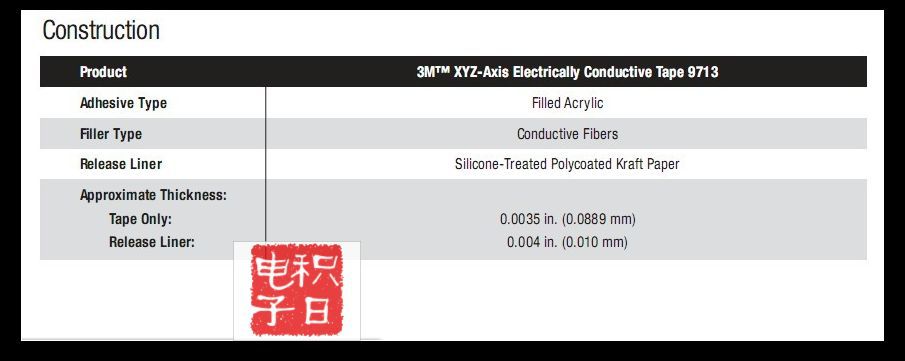

3M 9713双面导电胶带，厚度0.089MM，压感式丙烯酸，XYZ轴异向导电胶带，可应用于软板之间接着EMI/RFT屏障的导电性接合。适用温度：80℃~121℃。
规格：
英制：24IN*108YD
公制：600mm*100m
欢迎来电洽询订购。
18221259202
